KPM Relay Testing Kit 310/310+

KPM Relay Testing Kit 310/310+ Specification

Resistant Feature
Shock, Vibration, and Humidity Resistant

Usage & Applications
Relay testing, substation automation, on-site relay verification, maintenance

Batteries Type
Rechargeable Li-Ion

Accuracy
High precision, 0.2% F.S.

Product Type
Relay Testing Kit

Material
High-Grade ABS & Aluminum

Measuring Voltage Range
AC/DC 0-250V

Operating Temperature
-10C to +50C

Frequency (MHz)
50/60 Hz (Not in MHz)

Insulation Box
Yes

Protection System
Overload & Short Circuit Protection

Size
Portable/Handheld

Color
Blue with Gray Corners

Dimension (L*W*H)
Approx. 300 x 210 x 120 mm

Weight
Approx. 3.5 kg

Display
Large Color Touch-Screen Interface

Cooling Feature
Inbuilt cooling fan

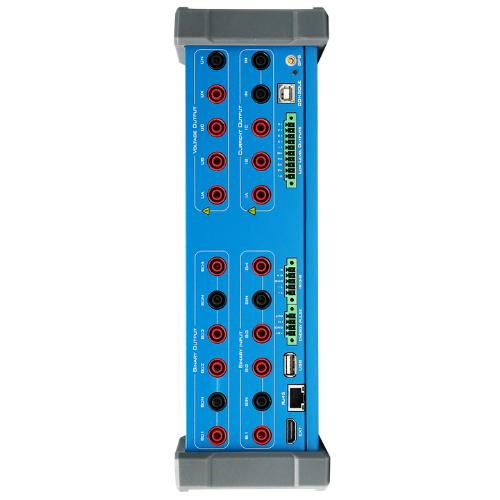

Outputs
Multiple channel AC/DC voltage and current sources

Test Types
AC test, Overcurrent, Sequence, Ramp, Differential, Directional, Step Voltage, Harmonic, 3-Phase Simulation

Memory Storage
Inbuilt Data Storage for Test Results

Power Supply
110V/220V AC, 50/60 Hz

Connectivity
USB and Ethernet Port for data transfer

Control
PC Remote control supported

Safety Standards
IEC 61010-1 Compliant

KPM Relay Testing Kit 310/310+ Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About KPM Relay Testing Kit 310/310+

Information :

High-power, High-precision, Multi-functional.

KPM KFA310 relay testing equipment has been designed with a compact interior, similar in size to an iPad, powered by batteries. This secondary injection test set weighs only 3.7 kg and offers 4x300V and 3x20A* outputs. Its maximum current can reach 50A*, and the output power reaches 130VA.

1. KPM KFA310 protection relay testing equipment marks the world's smallest protection relay tester with 7.0-inch LED touch screen. Easy to carry, iPad-sized, and weighing only 3.7 kg, it outputs up to 50A* with high precision and can continuously output 3x10A conditions.

2. Extremely simple design for its internal structure, ensures high quality and reliability.

3. Innovative "Plug and Play" technology enables this mini handheld secondary injection test set to make after-sales service very easy and efficient, within 20 working days.

4. Main functions :

AC/DC test, Ramping, State Sequence, Harmonic, Distance, Overcurrent
Oscillate Test: This secondary injection test set can be used for customizing superimposed oscillation waveform simulation testing.
Frequency test (df/dt, ROCOF)
3-Phase standard Power source
Energy meter calibration
Double-device synchronous test (up to 6 current channels for differential test)
8 Channels Low-Level outputs (0 - 8Vrms)

5. With its high-precision output, this mini handheld secondary injection test set can be used as a standard source.

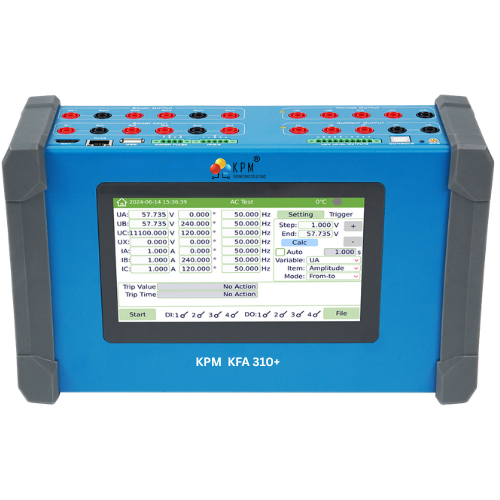

Intuitive Touch-Screen Display for Effortless Operation

The relay testing kit comes equipped with a large, full-color touch-screen interface, enabling users to set up and monitor complex tests quickly. The intuitive navigation reduces setup time and helps professionals efficiently configure various test parameters, such as voltage, current, and testing sequence, all in real time.

Multiple Test Modes for Comprehensive Relay Assessment

This kit supports a wide range of relay protection tests, including AC testing, overcurrent, sequence, ramp, differential, directional, step voltage, harmonics, and advanced 3-phase simulations. Its versatility makes it suitable for both routine maintenance and in-depth relay function analysis.

Reliable Safety, Portability, and Durability

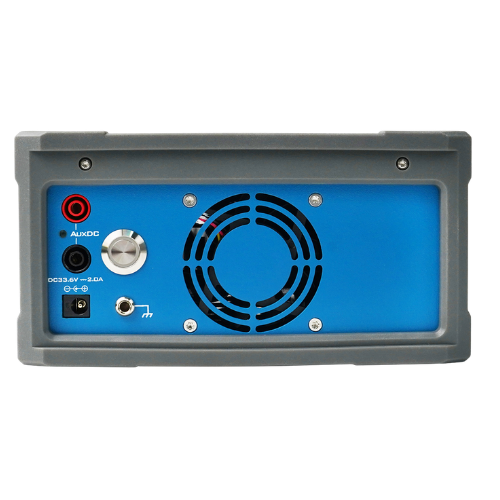

Designed for field and lab use, the kit features a powerful inbuilt cooling fan, robust overload and short-circuit protection, and is resistant to shock, vibration, and humidity. Its lightweight yet sturdy build, with dimensions of approximately 300 x 210 x 120 mm and weighing just 3.5 kg, makes it easy to transport and operate on-site.

FAQ's of KPM Relay Testing Kit 310/310+:

Q: How do I use the KPM Relay Testing Kit 310/310+ for on-site relay verification?

A: To use the kit on-site, simply connect the relay under test, select the desired test type using the touch-screen interface, and configure the output parameters. The kit's compact, portable design and rechargeable battery make it ideal for fieldwork, and test results can be saved or exported for reporting.

Q: What types of tests can be performed with this relay testing kit?

A: The kit supports a wide array of tests such as AC testing, overcurrent, sequence, ramp, differential, directional, step voltage, harmonic analysis, and 3-phase simulation, covering virtually all relay protection schemes required in power systems.

Q: When should I utilize the inbuilt memory storage for my test results?

A: You should use the memory storage whenever you need to document results for compliance or record-keeping, or when working in remote areas where immediate data transfer to a computer may not be possible. Test results can later be exported via USB or Ethernet.

Q: Where can the KPM Relay Testing Kit be applied?

A: This kit is suited for relay testing, substation automation, maintenance, and on-site relay verification in utility, industrial, or commercial electrical environments-anywhere high-precision relay assessment is required.

Q: What process is involved in transferring data from the device to a computer?

A: To transfer data, connect the device to a computer using either the USB or Ethernet port. Navigate to the data export menu on the display, select the files, and follow the prompts to transfer or backup your test data.

Q: What benefits does the cooling and protection system provide?

A: The inbuilt cooling fan ensures optimal operating temperatures are maintained, even during intensive test sessions, while overload and short circuit protection safeguard both the tester and the relay from accidental damage, enhancing safety and product longevity.

Q: How does the portable design benefit frequent users or field engineers?

A: The handheld, lightweight construction, along with rugged materials resistant to shock, vibration, and humidity, enables field engineers to easily transport and operate the kit under varied and tough environmental conditions.
