KPM-K2099, 64, 34 Relay Test Kit

Name: KPM-K2099, 64, 34 Relay Test Kit
Brand: KPM Engineering Solutions Private Limited
Price: 1200000.0 INR
Availability: InStock

KPM-K2099, 64, 34 Relay Test Kit Specification

Accuracy
0.2% (Typical)

Usage & Applications
Testing Protection Relays in Electrical Substations and Lab Environments

Resistant Feature
Corrosion and Shock Resistant Casing

Batteries Type
Mains Operated (No Internal Batteries)

Product Type
Relay Test Kit

Material
High-Grade Metal with Insulated Plastic Components

Measuring Voltage Range
0 to 250V AC/DC

Operating Temperature
0C to 50C

Frequency (MHz)
50/60 Hz (AC Testing)

Insulation Box
Available, Provides Electrical Isolation

Protection System
Integrated Overload and Short Circuit Protection

Size
Standard Lab Size

Color
White

Dimension (L*W*H)
Approx 420mm x 350mm x 200mm

Weight
Around 15 kg

Relay Types Supported
Electromechanical, Static, Numerical Relays

Connection Ports
Multiple Output Terminals (24 Channels)

Power Supply
230V AC, 50Hz

Environment Compliance
RoHS Compliant

Calibration
Factory Calibrated, External Calibration Supported

Fuse Protection
Resettable Fuse Protection

Display
Digital LCD or LED (Model Dependent)

Test Capabilities
Overcurrent, Differential, Distance, Voltage Relay Testing

Safety Certifications
CE, ISO Certified

Software Compatibility

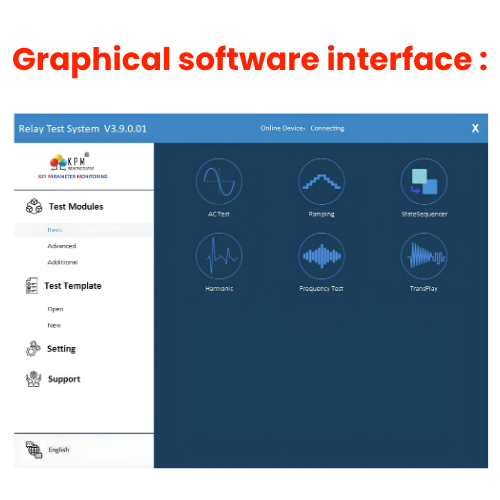

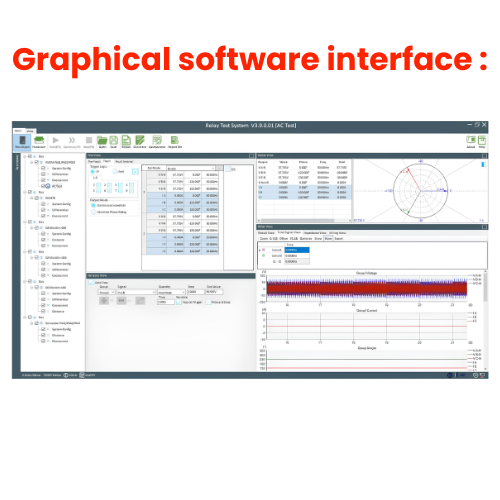

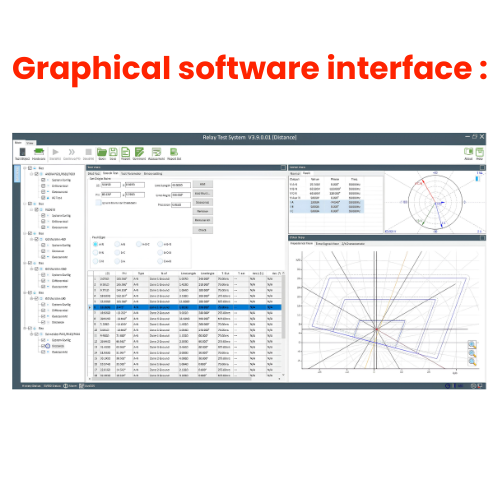

Compatible with Windows-based Control Software

Operating Modes
Manual and Automatic Testing Modes

Cooling System
Passive Air Cooling

Mounting
Portable with Carry Handle

Control Interface
USB, RS232, Ethernet

Body Finish
Powder Coated for Durability

External Communication
Supports Remote Operation via Ethernet

Additional Features
Built-in Self Test, Auto Trip and Reset Function

Output Current Range
0 to 10A AC/DC

About KPM-K2099, 64, 34 Relay Test Kit

Information :

The KPM K2099 Universal Relay Test Kit is a multipurpose, field-portable secondary injection test kit. It is capable of testing a wide variety of electromechanical, solid-state, and microprocessor-based protective relays, motor overload relays, and similar protective devices, as well as performing IEC 61850 testing.

Few key points are as below -:

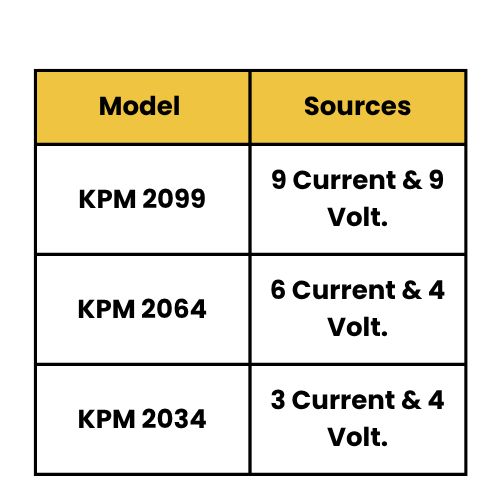

Configurable 9-phase voltage and current output. (up to 18-channel simultaneous output)
9 40 A @ 424 VA max & 9 310 V @ 105 VA max analog outputs.
Under 15 kg weight, easy to carry.
Ever-expanding test library templates.
High-precision and powerful 9-phase relay test set and commissioning tool.

Comprehensive Connectivity

The KPM-K2099 is equipped with multiple connection ports supporting USB, RS232, and Ethernet, enabling seamless integration with various control systems. With remote operation capability, users can conveniently manage testing procedures from different locations, enhancing operational flexibility in substations and labs.

Advanced Testing Capabilities

This relay test kit supports testing overcurrent, differential, distance, and voltage relays, making it suitable for a wide range of protection relay evaluations. Its high accuracy and multiple operating modes (manual and automatic) ensure reliable and repeatable results for mission-critical applications.

Safety and Durability

Designed with resettable fuse protection and integrated overload and short circuit protection, the KPM-K2099 prioritizes user safety. Its powder-coated corrosion-resistant casing, insulated box, and RoHS compliant components provide lasting durability and electrical isolation for safe operation under various conditions.

FAQ's of KPM-K2099, 64, 34 Relay Test Kit:

Q: How does the KPM-K2099 ensure reliable relay testing in substations?

A: The KPM-K2099 delivers reliable relay testing through precise current and voltage outputs (up to 10A and 250V), high measurement accuracy (0.2%), factory calibration, and software-based control, allowing consistent and repeatable results in substation environments.

Q: What is the process for connecting and operating the relay test kit?

A: Connect relays via multiple output terminals, interface with USB, RS232, or Ethernet, and operate using Windows-based control software. The kit supports both manual and automatic testing modes, enabling flexible operation for different types of relay tests.

Q: When should external calibration be performed on the KPM-K2099?

A: External calibration may be required periodically according to the lab or utility's maintenance schedule, especially after prolonged use or when accuracy verification is needed. The kit supports factory and user-initiated calibration for continued precision.

Q: Where can the KPM-K2099 Relay Test Kit be used?

A: The kit is designed for use in electrical substations, laboratory environments, and anywhere comprehensive relay testing is required. Its portable design with a carry handle and standard lab dimensions make it suitable for both field and bench applications.

Q: What are the benefits of the built-in self test and auto trip/reset functions?

A: These features streamline setup and verification by ensuring proper device functioning and automating relay trip and reset actions during tests, improving efficiency and reducing operator intervention.

Q: Is remote operation supported, and how is it utilized?

A: Yes, remote operation is supported via Ethernet communication. Users can manage testing sessions from a central workstation, enhancing productivity and safety by minimizing direct contact with high-voltage apparatus.

Q: How is safety maintained during testing with this relay kit?

A: Safety is ensured through resettable fuse protection, overload and short circuit protection, electrical isolation via the insulation box, and compliance with CE and ISO certifications, providing a safe and robust testing environment.
