KPM TD 12 Pro

KPM TD 12 Pro Specification

Accuracy
High measurement accuracy (typ. 1% rdg. 0.04% of full scale)

Pressure
Atmospheric; Designed for field conditions

Batteries Type
Rechargeable Lithium-ion battery or AC mains powered

Resistant Feature
Dustproof and splash resistant (IP54 protection class)

Usage & Applications
Testing dissipation factor (tan delta) and capacitance in high voltage electrical equipment

Product Type
Dissipation Factor Tester

Material
High-grade engineering plastic and metal housing

Measuring Voltage Range
Up to 10kV AC (as per standard Dissipation Factor Testers)

Operating Temperature
-10C to +50C

Frequency (MHz)
50 / 60 Hz (Standard power frequency, not MHz)

Insulation Box
Provided (as part of the protective carrying case)

Protection System
Integrated overload and short-circuit protection

Size
Portable, compact design

Color
Grey and Yellow

Dimension (L*W*H)
Approx. 400mm x 320mm x 180mm

Weight
Approx. 7.5 kg

Environmental Conditions
Humidity: up to 90% RH (non-condensing)

Power Supply
AC 220V, 50/60Hz or internal batteries

Safety Features
Automatic grounding detection and alarm

Calibration
Factory calibrated with calibration certificate included

Data Storage
Internal memory supports up to 1000 test results

Software Support
Data management software provided for analysis and reporting

Display Type
Large digital LCD with backlight for easy reading

Communication Interface
USB port for data export and PC software connectivity

Standards Compliance
IEC 60270, IEC 60076, and other relevant standards

Test Modes
Auto, manual, continuous

KPM TD 12 Pro Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
2-3 Days

About KPM TD 12 Pro

Unlock a new era of high-voltage diagnostic capabilities with the KPM TD 12 Pro, an opulent dissipation factor and capacitance tester engineered for precision. Designed with a lustrous large digital LCD and personalized backlight, it offers marvelous visibility even in challenging environments. Internal memory marvelously records up to 1000 results, while robust safety features such as automatic grounding detection ensure reliable operation. The portable, compact build, compliant with IEC standards, makes this a trustworthy addition for professionals seeking seamless data export, exceptional accuracy, and supreme protection out in the field.

KPM TD 12 Pro: Feature-Rich Excellence for Professionals

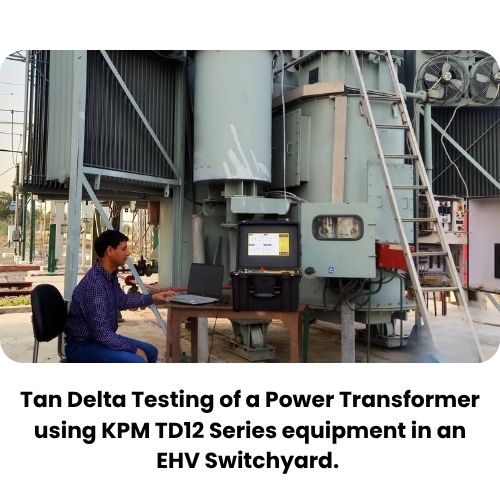

The KPM TD 12 Pro stands out with extra features including integrated overload and short-circuit protection, a factory calibration certificate, and included insulation box in a protective carrying case. Used as an advanced instrument for measuring dissipation factor (tan delta) and capacitance, it is the premier choice for electrical engineers, maintenance specialists, and quality assurance teams. This device delivers reliable testing in substations, power plants, and on-site throughout the industry for consistent, accurate diagnostics in high-voltage scenarios.

Export Market Reach & Sample Policy for the KPM TD 12 Pro

The KPM TD 12 Pro sees a robust drop-off to export markets worldwide, backed by a smooth shipment process and thorough documentation. For customers seeking detailed information before placing orders, quotations are quickly provided upon inquiry. Sample units are available for hands-on evaluation-a vital step for large-scale orders-ensuring every shipment meets the exacting standards expected by discerning clients in the power and energy sectors before delivery.

FAQ's of KPM TD 12 Pro:

Q: How does the KPM TD 12 Pro ensure high measurement accuracy?

A: The KPM TD 12 Pro is factory calibrated and comes with a calibration certificate, providing high measurement accuracy with a typical error of just 1% rdg. and 0.04% of full scale. It also meets international standards such as IEC 60270 and IEC 60076.

Q: What types of data storage and export options are available?

A: This device features an internal memory capable of holding up to 1000 test results. Data can be exported via USB and analyzed using the included data management software, enhancing record-keeping and reporting.

Q: Where is the KPM TD 12 Pro commonly used?

A: The KPM TD 12 Pro is extensively used in electrical substations, power plants, and field maintenance operations for testing dissipation factor and capacitance in high-voltage electrical equipment.

Q: What benefits does the automatic grounding detection offer?

A: Automatic grounding detection enhances user safety by alerting to improper grounding conditions, significantly lowering the risk of erroneous readings or operator exposure to hazardous voltages.

Q: When can I expect shipment and sample drop-off for orders?

A: Shipment schedules are confirmed upon order and quotations. For those requesting evaluation units, sample drop-off is available, allowing thorough product assessment prior to full-scale purchase.

Q: How resistant is the KPM TD 12 Pro to environmental conditions?

A: Engineered to operate in up to 90% humidity and temperatures ranging from -10C to +50C, the KPM TD 12 Pro is both dustproof and splash resistant (IP54 class), making it resilient for demanding field applications.
