KPM Penta PD Pro

KPM Penta PD Pro Specification

Resistant Feature
Impact-resistant, dust-resistant, water-resistant (IP protection as per model)

Batteries Type
Rechargeable Li-ion (built-in battery in main unit)

Accuracy
High sensitivity; typically 5% (measurement accuracy depends on system calibration)

Pressure
Atmospheric (non-pressurized case)

Usage & Applications
Partial discharge detection and analysis in electrical equipment, cables, GIS, transformers, and switchgear

Product Type
Partial Discharge (PD) Measurement System

Material
High-impact plastic case, PVC foam insert

Measuring Voltage Range
Up to several kV (exact value as per model)

Operating Temperature
0C to 50C (typical)

Frequency (MHz)
Up to 250 MHz (range depends on probe and configuration)

Insulation Box
Rugged custom foam insulated hard carrying case

Protection System
Shock-absorbent internal padding

Size
Portable/Compact

Color
Black case, multi-colored input modules

Dimension (L*W*H)
Approx. 45 cm x 35 cm x 18 cm (case external)

Weight
~9 kg (including all measurement accessories)

Interface
Touchscreen display, USB, Wi-Fi connectivity

Indicator
Status LEDs for power and channel activity

Environmental Protection
Corrosion resistant case hardware

Data Storage
Internal memory (expandable), supports SD card

Software Included
PD analysis software suite

PC Connectivity
USB port and wireless connectivity for data transfer and remote control

Accessories

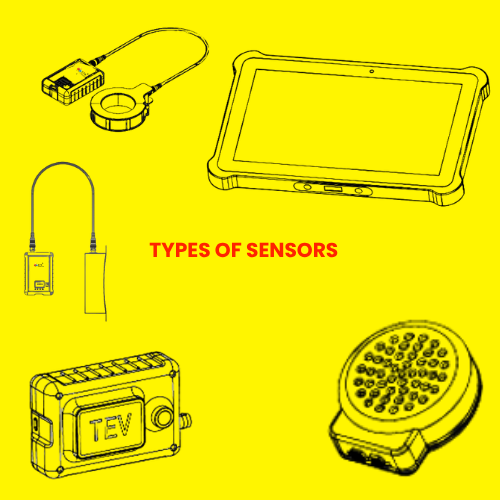

Set of PD probes, cables, calibration kit, and user manual

Display Type
High-resolution color touchscreen

Input Channels
Multiple (up to 5 simultaneous) PD input channels

Operating Humidity
Up to 90% RH, non-condensing

Power Supply
AC adapter and battery operation

Charging Time
Approx. 3-4 hours (full charge)

About KPM Penta PD Pro

Clearance event: Now's your chance to grab the splendiferous KPM Penta PD Pro-an industry superlative in partial discharge detection and analysis. This pristine device boasts a high-resolution, multi-colored touchscreen display, multiple PD input channels (up to 5), and select connectivity options including USB and Wi-Fi. With robust internal memory (expandable via SD card), shock-absorbent padding, and corrosion-resistant, high-impact casing, the portable Penta PD Pro is engineered for rugged environments. Accessories include a complete set of PD probes, calibration kit, and more. Secure this cutting-edge instrument at an unmatched value.

KPM Penta PD Pro: Your Superior Advantage for PD Analysis

Harness superlative innovation with the KPM Penta PD Pro. Its primary competitive advantages include precision multi-channel monitoring, versatile touch controls, and splendiferous software integration for advanced analysis. This solution excels in applications like transformers, switchgears, GIS, and cable diagnostics, ensuring accurate evaluation on pristine surfaces across diverse electrical equipment. KPM sets itself apart with rugged durability, atmospheric pressure operation, and compatibility in challenging humidity and temperature conditions.

Sample Policy, Secure Payments, and Swift Delivery

Our sample exchange policy allows you to evaluate the KPM Penta PD Pro before finalizing your proposal amount. Payment terms are flexible, accommodating partial or full charges as per agreement. Order processing is efficient: expect your delivery to arrive within a short lead time, ensuring prompt deployment of this high-impact instrument. Comprehensive support from our team ensures you experience a seamless purchase, from initial charge to final exchange.

FAQ's of KPM Penta PD Pro:

Q: How does the KPM Penta PD Pro enhance partial discharge detection?

A: The KPM Penta PD Pro provides superlative sensitivity and accuracy with up to five simultaneous PD input channels, advanced analysis software, and high-resolution touchscreen controls, ensuring reliable detection across various electrical equipment.

Q: What are the primary applications for this device?

A: This instrument is ideal for partial discharge detection and analysis in electrical assets such as transformers, GIS, switchgear, and cables, making it invaluable for utility, substation, and maintenance professionals.

Q: When can I expect my KPM Penta PD Pro to be delivered after purchase?

A: Typically, delivery occurs within a short processing time after order confirmation and payment charge, ensuring quick deployment of your evaluation or final unit.

Q: Where can I use the KPM Penta PD Pro?

A: The device is suitable for diverse settings, both in the field and laboratory, thanks to its impact-resistant, dust-resistant, and water-resistant casing and portable, rugged hard carrying case.

Q: What is the process for exchanging a sample before purchase?

A: Our exchange process allows you to request a sample unit, assess performance, and proceed with the purchase upon satisfaction or propose further terms as needed.

Q: How does data transfer and remote operation work?

A: You can transfer test data and control the device remotely using built-in USB and Wi-Fi connectivity, ensuring flexibility during operation and streamlined workflow integration.
